Configuration

This section outlines the configuration steps required to integrate the DataHub module with the ASI 3 platform, enabling centralized management from ASI.

Pre-requisites​

Before proceeding, ensure that you have at least one Data Hub node (v2.1.0 or later) fully installed and configured.

For installation instructions, refer to the official documentation: Installing DataHub

Setting up ASI DataHub​

To initialize the ASI DataHub module, execute the setup script as ppadmin:

/opt/ISS/asi-datahub/bin/setupAsiDataHub

This script will configure the necessary components to allow the Data Hub node to communicate with and be managed by the ASI 3 platform.

First node / Single Node Setup​

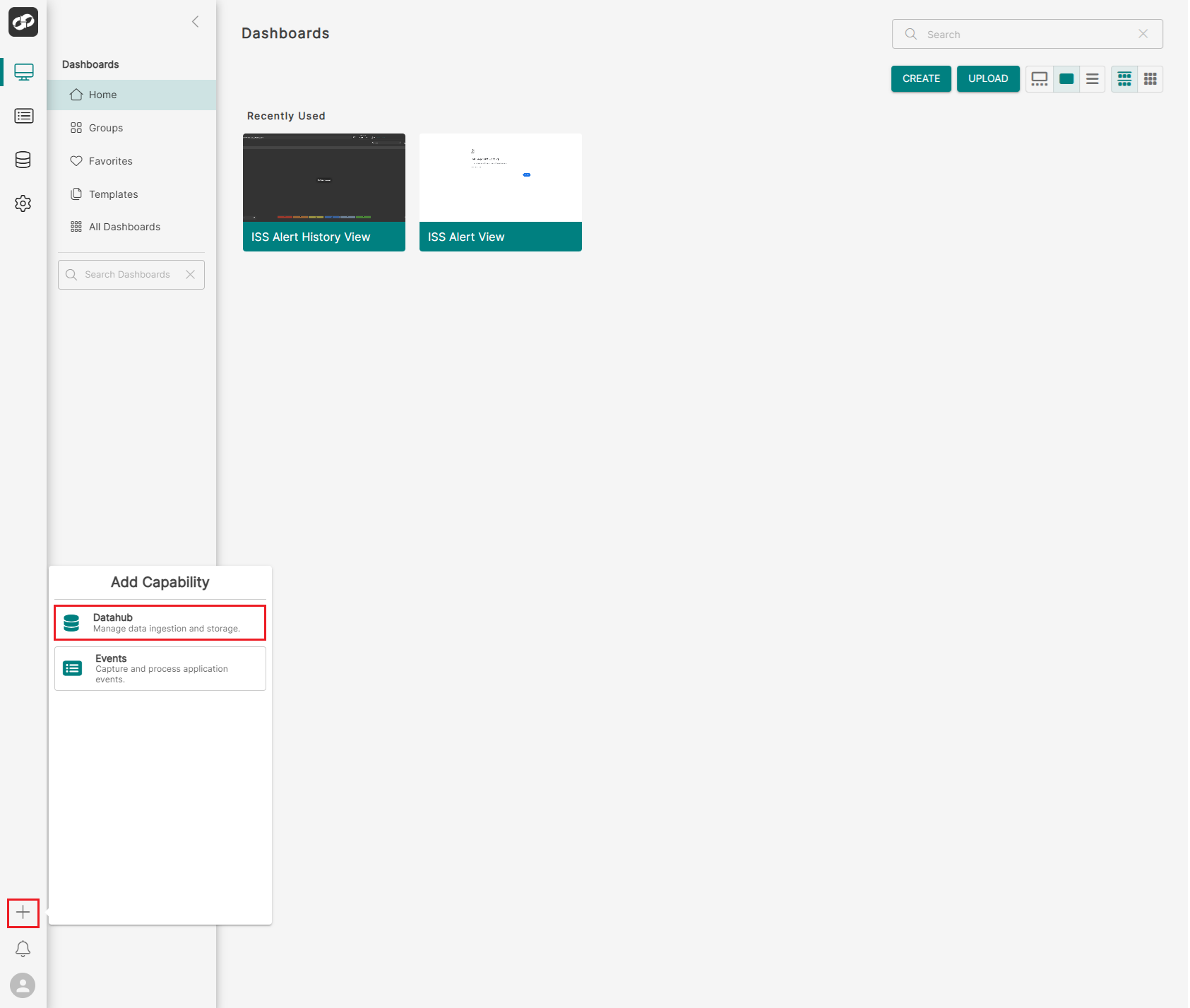

Login to your asi3 system with administrator privileges and click the Add Capability icon and select Datahub.

DataHub Capability

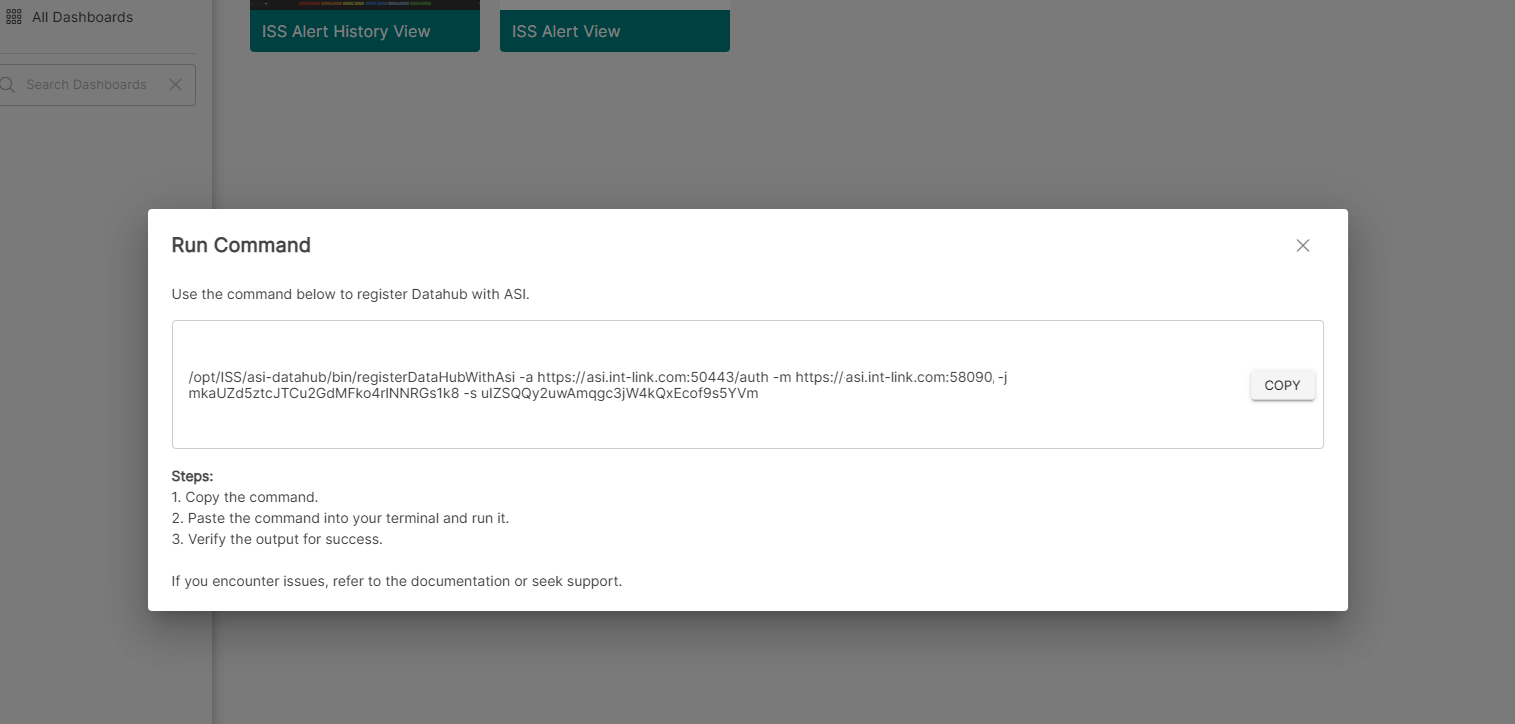

This will generate the registration command for your Datahub instances. Click copy to store this into your ClipBoard.

DataHub Capability

Login to your Datahub server with a ppadmin session and paste the generated command, this will register the Datahub node with asi3.

/opt/ISS/asi-datahub/bin/registerDataHubWithAsi -a https://asi.int-link.com:50443/auth -m https://asi.int-link.com:58090 -j mkaUZd5ztcJTCu2GdMFko4rlNNRGs1k8 -s uIZSQQy2uwAmqgc3jW4kQxEcof9s5YVm

Start the Service​

Once registration is complete, start the iss-asi-datahub service:

systemctl start iss-asi-datahub.service && tail -F /opt/ISS/logs/asi-datahub/asi-datahub.log

Add a Node to an Existing ASI 3 Cluster​

note

All actions in this section must be performed as the ppadmin user on the designated Data Hub node.

Interactive Configuration​

To add a Data Hub node to an existing ASI 3 cluster, use the provided cluster join script located at:

/opt/ISS/asi-datahub/bin/joinAsiCluster

You will be prompted to supply the required configuration values.

Unattended (Automated) Configuration​

The script also supports command-line arguments for unattended setup:

Usage: ./joinAsiCluster [-a|--authenticator_url <arg>] [-m|--management_service_url <arg>] [-j|--join_secret <arg>] [--(no-)quiet] [-h|--help]
        -a, --authenticator_url: The authenticator can be seen through the load balancer or the direct address of the authenticator if not (no default)
        -m, --management_service_url: Where a management service instance can be located (no default)
        -j, --join_secret: The client secret to operate with (no default)
        --quiet, --no-quiet: Don't prompt for input (off by default)
        -h, --help: Prints help

Start the Services​

Once the node has been successfully registered with the cluster, start the required services:

systemctl start iss-datahub.service
systemctl start iss-asi-datahub.service

Validate​

In the ASI 3 web interface, you can verify that the Data Hub module has been successfully registered by confirming its presence in the left-hand navigation menu, you may need to perform a refresh of your browser.

DataHub Module
