Create LDAP Authorization Provider

The following section covers how to setup an LDAP authorization provider for user authentication

Log on to ASI and navigate to Settings

Settings

From the index on the left, select Access Management then Authorization Providers

You will then be presented with the Authorization Providers page

Authorization Providers Page
  • Click the CREATE button in the top right of the page which will bring up an option list of provider types.
  • Click LDAP

You will then be presented with the Create Federation Provider page

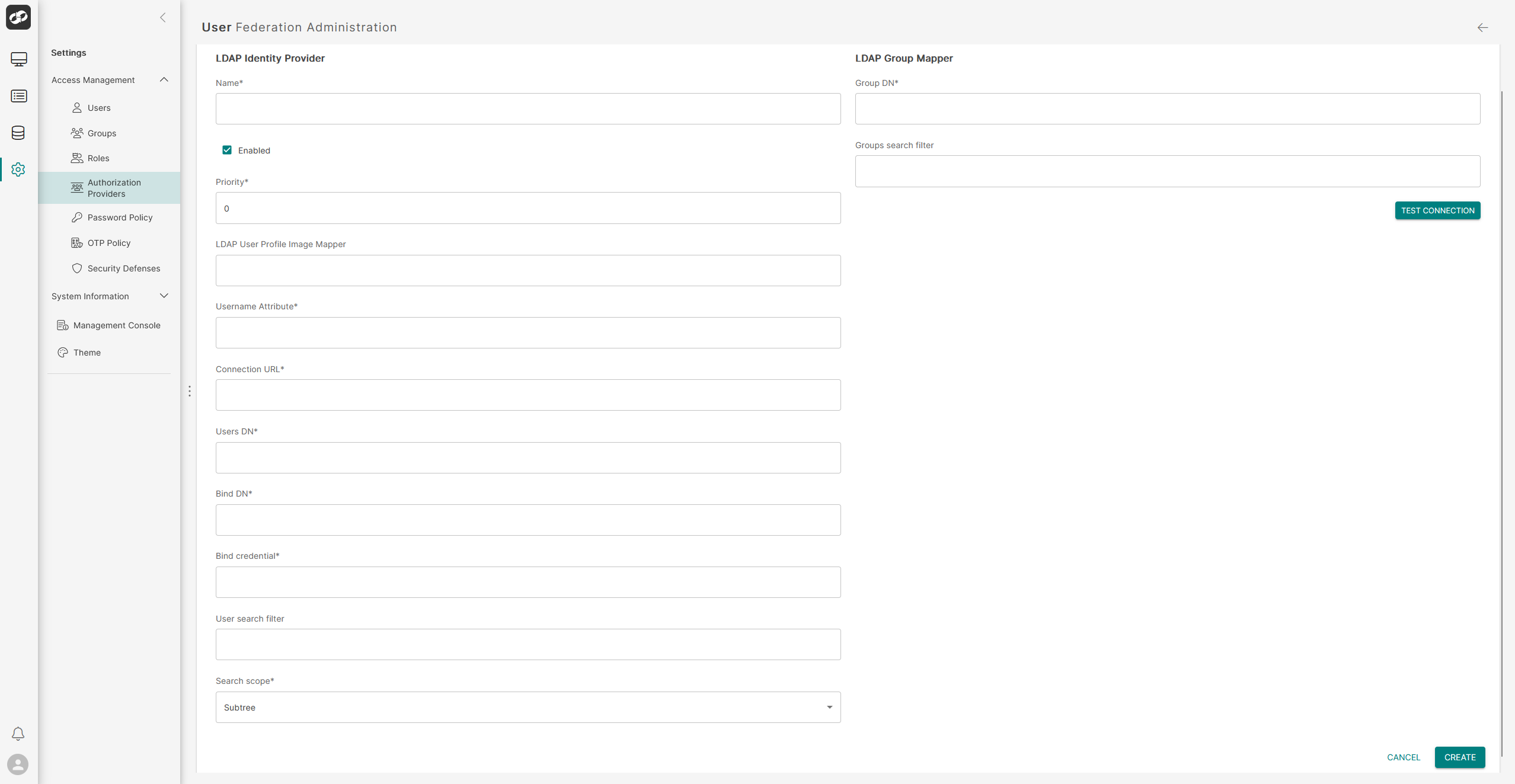

Create Federation Provider Page

Define the attributes for LDAP authentication

LDAP Identity Provider

  • In the Name box, type a name for the authentication
  • Check the Enabled check box to enable the authentication
  • In the Priority box, define a priority (zero by default)
  • In the LDAP User Profile Image Mapper box, enter the name of the attribute in LDAP that contains each user's image (if any)
  • In the Username Attribute box, enter the name of the attribute in LDAP that contains the username
  • In the Connection URL box, enter the URL of the LDAP server
  • In the Users DN box, enter the base distinguished name (DN) where user accounts are located within LDAP. (This is a string of attribute=value pairs, separated by commas, that specifies the hierarchical location of the users). For example: OU=Users,OU=dummy,DC=org,DC=com
OU=Users | Represents the organizational unit (OU) that contains the user accounts
OU=dummy | Represents the department within the company to which the user belong
DC=org | Specifies the name of the company's domain
DC=com | Indicates the domain suffix, such as .com, .org, etc
  • In the Bind DN box, enter the distinguished name (DN) of the LDAP account used for binding (e.g., CN=dummybind,OU=Users,DC=dummy,DC=com)
  • In the Bind Credential box, enter the password for the bind DN account to authenticate with the LDAP server
  • In the User search filter box, enter an LDAP query to search for users, typically mapping the username to a specific LDAP attribute (e.g., (sAMAccountName={username}))
  • In the Search scope dropdown, select either One Level (to search only within the specified organizational unit) or Subtree (to search within the specified organizational unit and all its sub-units)

LDAP Group Mapper

  • In the Group DN box, enter the base distinguished name (DN), consisting of attribute=value pairs separated by commas, used to search for users when retrieving group information (e.g., OU=ASI3,OU=Testing,OU=Groups,OU=dummy,DC=org,DC=com).
  • In the Groups search filter box, enter an LDAP query to search for groups, such as (objectClass=group) to find all groups or (&(objectClass=group)(cn=ASI3_TEST_GROUP)) to find groups containing a specific name

You can check the configuration by clicking Test Connection which should return Success! Connections are good

  • Click Apply to apply the new authentication
